925-1418 La Crosse Sensor Weather Shield

925-1418 La Crosse Sensor Weather Shield

$41.00 AUD
$41.00 AUD
Sale Sold out

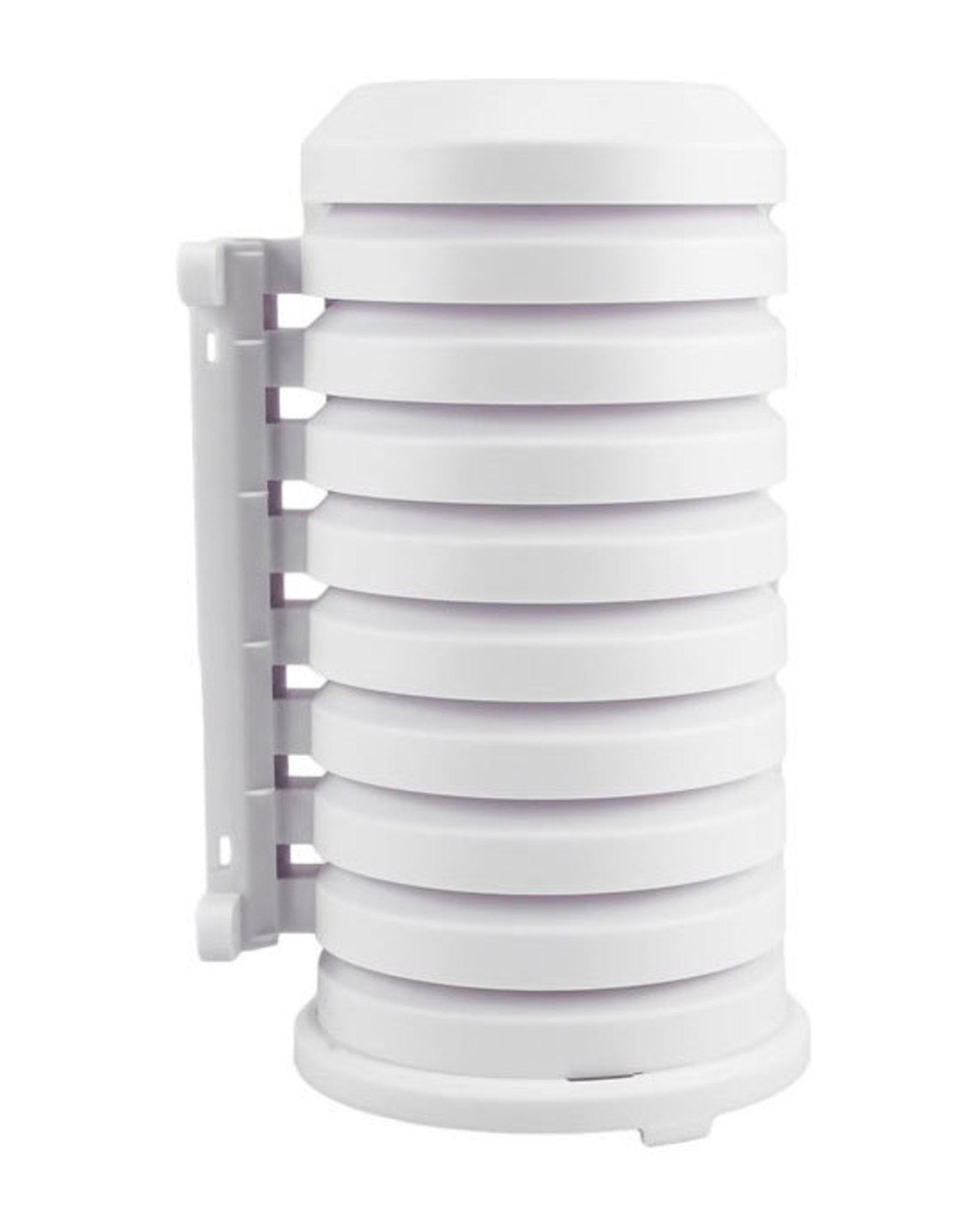

The Sensor Weather Shield is designed to protect your outdoor sensors from rain and snow. This shield will offer limited protection from the sun's heat.

Sensor Shield only, Sensor is not included.

Feature:
Mounts to a flat surface:
  • Twist the cover clockwise to remove the base.
  • Place one long screw through the center hole of the base.
  • Tighten until the head of the screw is flat with the base.
  • Do not overtighten.
OR Mounts to a wall or post:
  • Slide the mounting bracket down and remove from the cover.
  • Take note of the UP ARROW on the back of the bracket.
  • Find a shaded location and attach the bracket (arrow UP) with the four screws (included), or with the two zip ties (included).
  • Note: Allow room to slide cover onto bracket.
  • Slide the shield down onto the bracket.
Insert a Sensor for Protection from the Elements:
  1. Twist the cover clockwise to remove the base.
  2. Attach the Velcro tape to the sensor and to the upright on the base. This keeps the sensor from tipping.
  3. Alternately, secure the sensor with a zip tie.
  4. With a probe sensor, be sure the probe wire fits through the round hole in the base.
  5. Place cover over sensor and base. Twist counter clockwise to lock into place. Sensor must fit entirely in the sensor shield to be protected.
  6. Mount the sensor shield so that the sensor is in range of the display.

Only recommended for use with the following La Crosse Technology outdoor sensors:
  • TX21 (WS-1517)
  • TX6U
  • TX7U
  • TX141 Series
  • TX142 Series
  • TX143 Series
  • TX191
  • TX232TH-LCD
  • TX25U
  • TX28U-IT
  • TX29U-IT Series
  • TX37U-IT
  • TX38U-IT
  • TX40U-IT
  • TX44UDTH-IT
  • TX45 Series
  • TX50U-IT
  • TX60U-IT
  • TX70U-IT
  • TX71U-IT Series

Dimensions:  17.78 H x 9.47 W x 10.11 D cm

The internal diameter is 6cm; the Depth is 16cm.
